DIN 69872A without Coolant Hole Pull Studs

SKU N/A Categories , ,

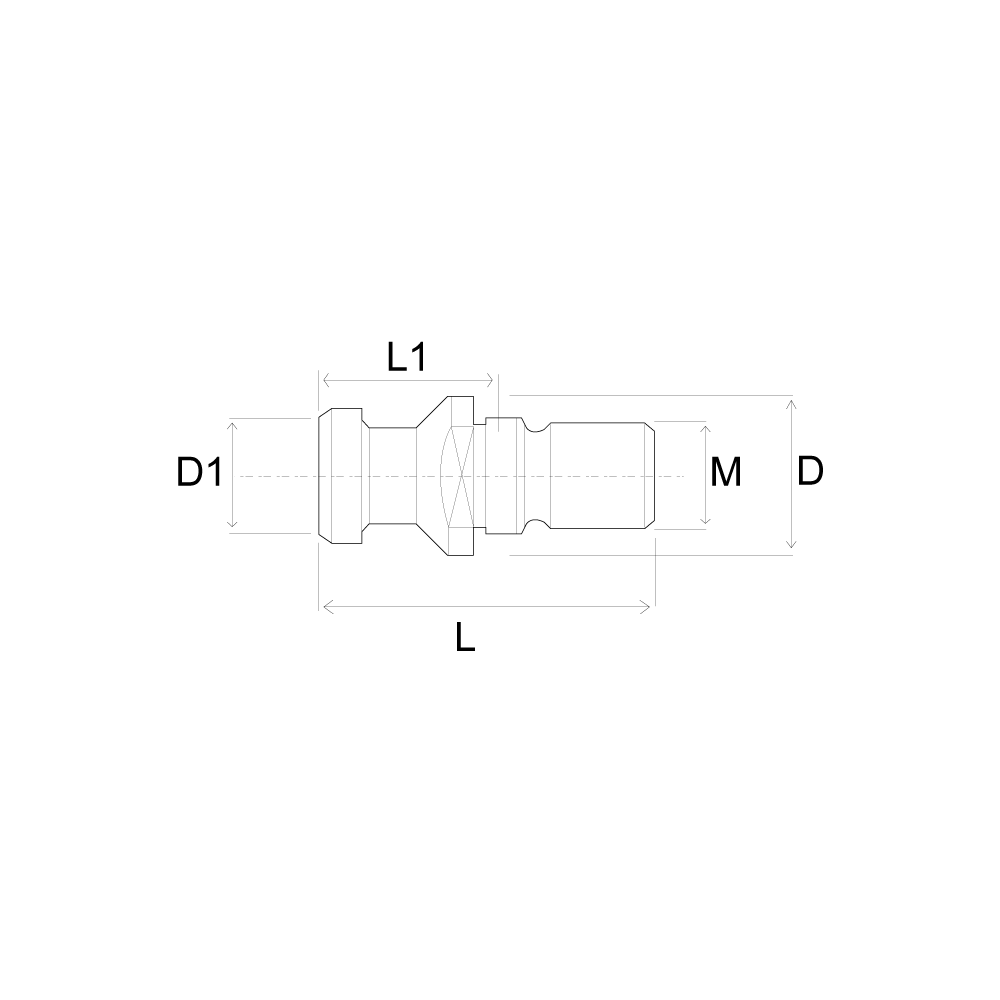

Pull Stud Specifications

Art.-Nr. Description Thread D D1 L L1 Angle
PS.SK40.15 SK40 (69871) M16 23 19 54 26 15º
PS.SK50.15 SK50 (69871) M24 36 28 74 34 15º

DIN 69872A Pull Studs (without Coolant Hole) – Made in Turkey

Ensure the perfect connection for your tooling with our DIN 69872A Pull Studs, designed for machines without a through-spindle coolant system. These retention knobs are engineered to meet the stringent requirements of the DIN 69872A standard, providing a solid and secure connection between your tool holder and the machine spindle. Their robust design, optimized for non-coolant applications, provides exceptional rigidity and durability for all your standard machining needs. avastec, for your precision.

Engineered for Secure & Reliable Tool Holding

Our pull studs are a vital component for maintaining the efficiency and safety of your machining operations.

  • DIN 69872A Standard: Meticulously crafted to perfectly match the exact specifications of the DIN 69872A standard, ensuring a flawless fit and preventing premature wear.
  • Solid Construction: The “without coolant hole” design maximizes the material’s strength, providing a pull stud that can withstand high clamping forces and rigorous machining conditions.
  • Durable & Safe: Manufactured from high-quality, case-hardened steel, the pull studs provide exceptional strength and resistance to wear, ensuring a long and reliable service life.
