MAS 403 BT without Coolant Hole Pull Studs
MAS 403 BT without Coolant Hole Pull Studs - Image 2

MAS 403 BT without Coolant Hole Pull Studs

BACK
Add to quote
SKU N/A Categories , ,

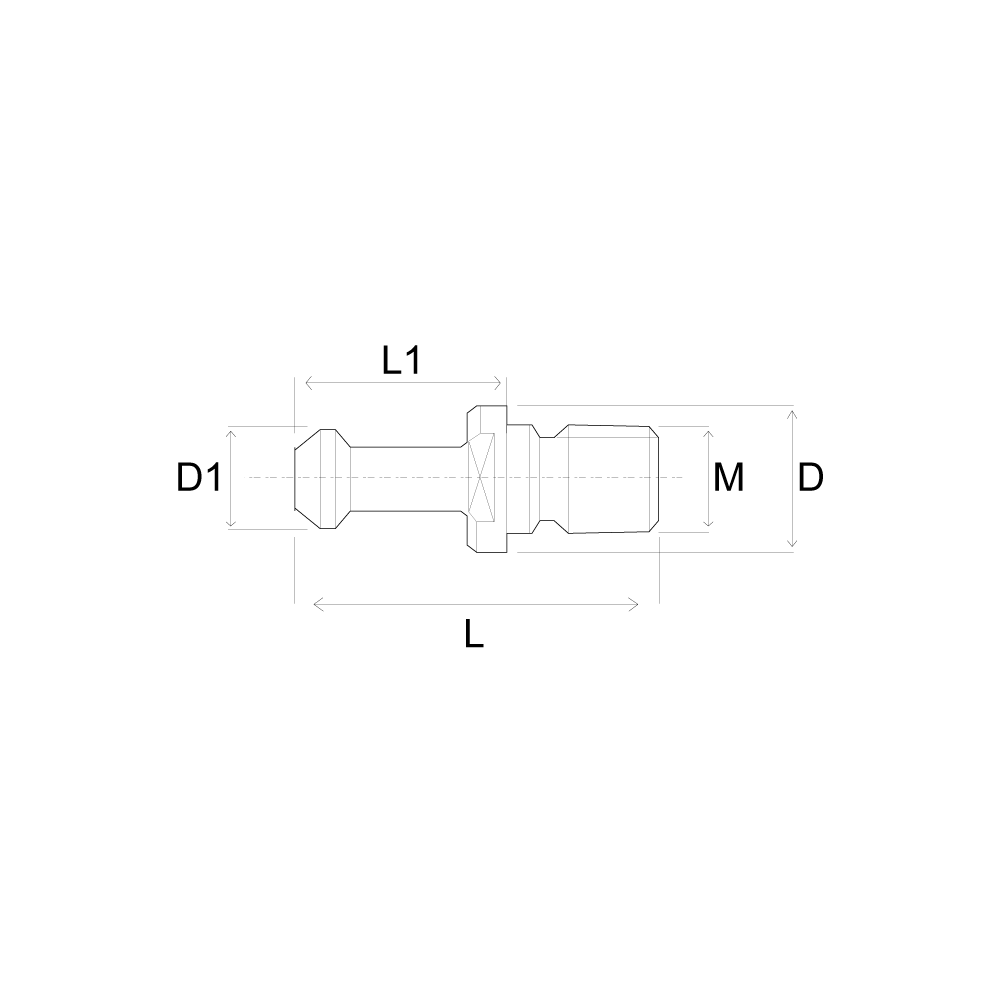

Pull Stud Specifications

Art.-Nr. Description Thread D D1 L L1 Angle
PS.BT30.45 BT30 M12 16.5 11 43 23 45º
PS.BT30.60 BT30 M12 16.5 11 43 23 60º
PS.BT30.90 BT30 M12 16.5 11 43 23 90º
PS.BT40.45 BT40 M16 23 15 60 35 45º
PS.BT40.60 BT40 M16 23 15 60 35 60º
PS.BT40.90 BT40 M16 23 15 60 35 90º
PS.BT50.45 BT50 M24 38 23 85 45 45º
PS.BT50.60 BT50 M24 38 23 85 45 60º
PS.BT50.90 BT50 M24 38 23 85 45 90º

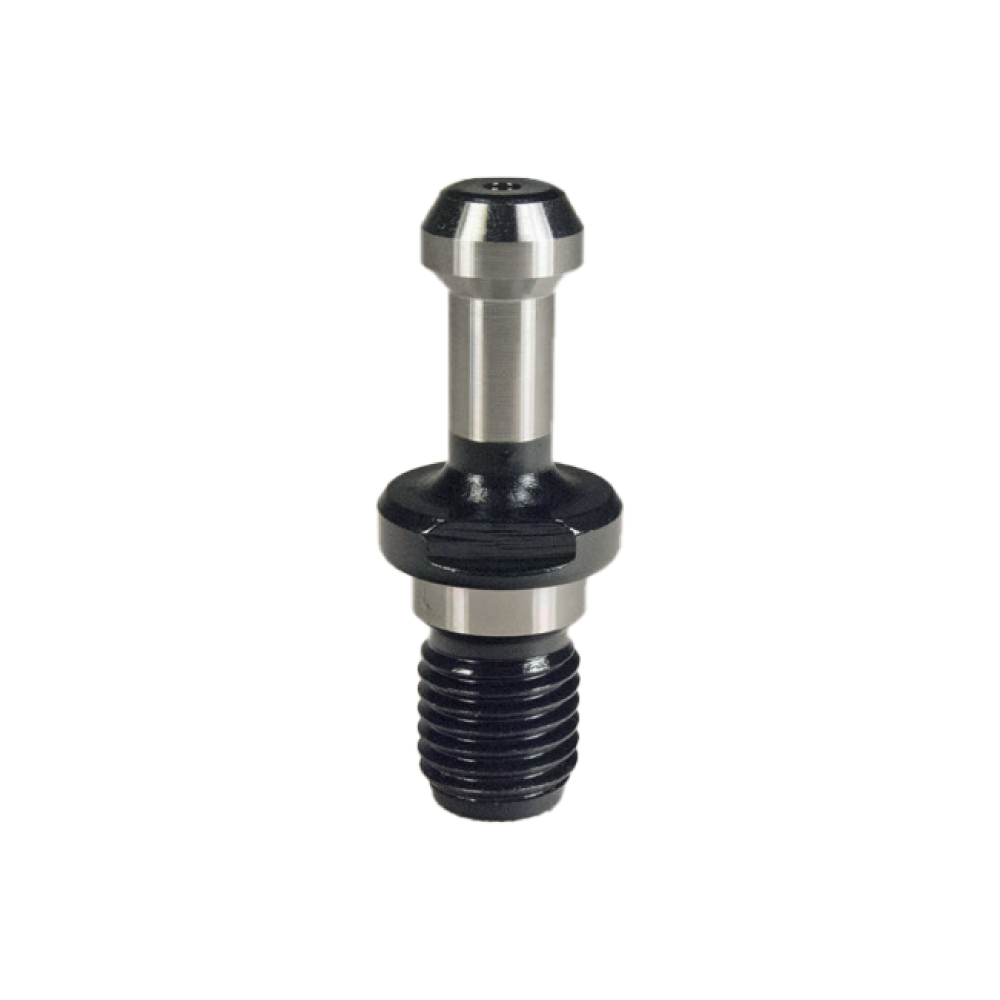

MAS 403 BT Pull Studs (without Coolant Hole) – Made in Turkey

Ensure the perfect connection for your tooling with our MAS 403 BT Pull Studs, designed for machines without a through-spindle coolant system. These retention knobs are engineered to meet the stringent requirements of the MAS 403 BT standard, providing a solid and secure connection between your tool holder and the machine spindle. Their robust design, optimized for non-coolant applications, provides exceptional rigidity and durability for all your standard machining needs. avastec, for your precision.

Engineered for Secure & Reliable Tool Holding

Our pull studs are a vital component for maintaining the efficiency and safety of your machining operations.

  • MAS 403 BT Standard: Meticulously crafted to perfectly match the exact specifications of the MAS 403 BT spindle, ensuring a flawless fit and preventing premature wear.
  • Solid Construction: The “without coolant hole” design maximizes the material’s strength, providing a pull stud that can withstand high clamping forces and rigorous machining conditions.
  • Versatile Angles: Available in 45°, 60°, and 90° options to accommodate different machine types and their specific spindle requirements.
  • Durable & Safe: Manufactured from high-quality, case-hardened steel, the pull studs provide exceptional strength and resistance to wear, ensuring a long and reliable service life.

Contact Us!

About Avastec Products;
You can contact us for a price quote and delivery date.
