D32 Milling Collet
D32 Milling Collet - Image 2

D32 Milling Collet

BACK
Add to quote
SKU N/A Categories , ,

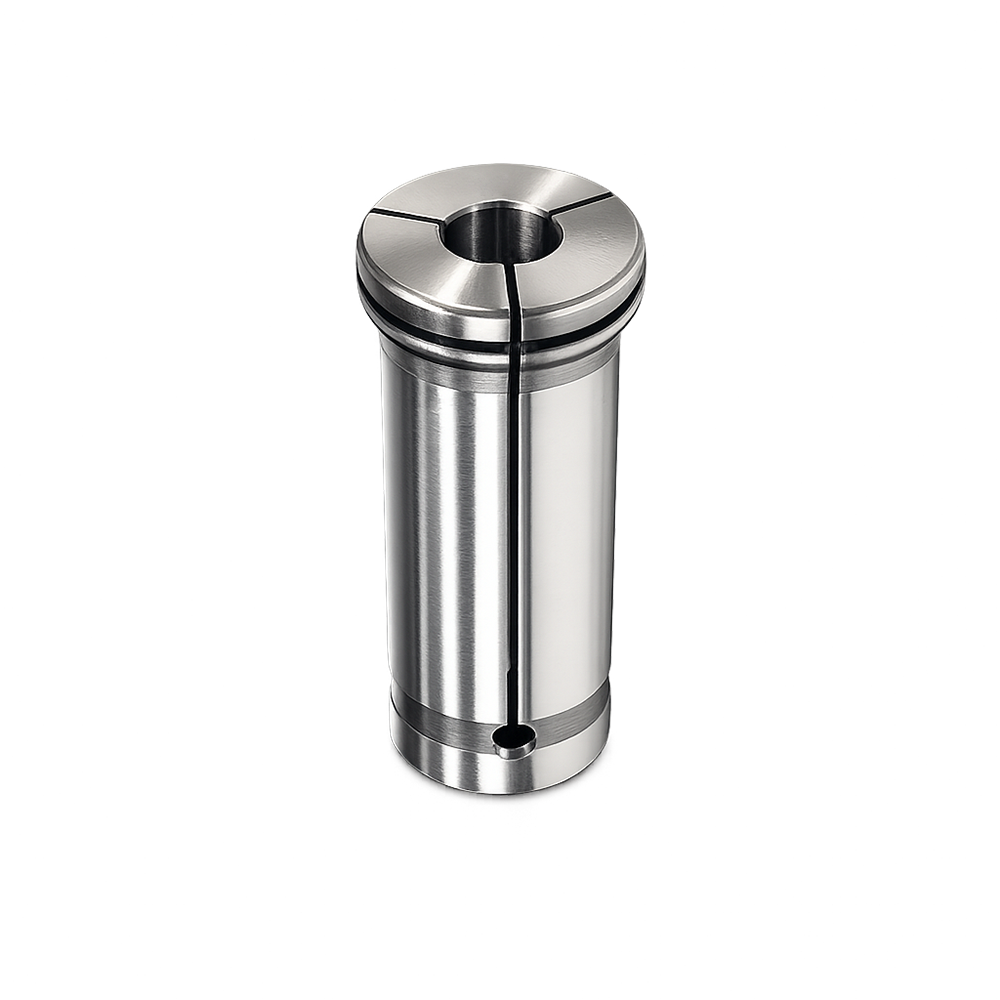

D32 Milling Collet – Made in Turkey

Optimize your milling operations and ensure peak performance with our D32 Milling Collet. This precision-engineered component is designed to be used with a milling chuck, providing the exceptional clamping force and concentricity required for a superior surface finish. With a versatile clamping range of 4-25mm and an overall diameter (D) of 32mm, this collet is a fundamental tool for a wide variety of milling applications. As a testament to Turkish manufacturing expertise, each collet is meticulously crafted to ensure a long and reliable service life.

Milling Collets for Milling Chuck

Product Code d (Clamping Range in mm) D (mm) L (mm)
BP.20.Ø… 3-16 20 50
BP.25.Ø… 3-20 25 60
BP.32.Ø… 4-25 32 65

Milling Chuck Sets

Product Code Description L (mm)
BP.20.SET 9 pcs Metric sized collets Ø3-16mm in box Ø3-4-5-6-8-10-12-14-16mm 50
BP.25.SET 11 pcs Metric sized collets Ø3-20mm in box Ø3-4-5-6-7-8-9-10-11-12-13-14-15-16-17-18-20mm 60
BP.32.SET 11 pcs Metric sized collets Ø4-25mm in box Ø4-5-6-7-8-9-10-11-12-13-14-15-16-17-18-20-25mm 65

Key Features for Unmatched Performance

Our D32 Milling Collet is a smart investment that provides both versatility and precision.

  • Secure Clamping: The design provides a robust and uniform grip on the tool shank, which is crucial for preventing slippage and maintaining stability during high-speed and heavy-load milling.
  • High Precision: The collet is engineered to minimize runout, leading to exceptional part accuracy and a flawless surface finish on your workpieces.
  • Versatile Solution: A single milling chuck can accommodate a wide range of tool diameters from 3mm to 20mm, reducing the need for multiple chucks and streamlining your workflow.

We also offer the D32 Milling Collet as a complete set, providing a convenient and cost-effective solution for your shop. The BP.32.SET includes 11 metric collets in a box with diameters of 4, 5, 6, 8, 10, 12, 14,16,18,20 and 25mm.

Contact Us!

About Avastec Products;
You can contact us for a price quote and delivery date.
